Specifications
| Age approx. | 1–5 years |
| Max user weight | 48.4 lbs. (22 kg) |
| User height | (Min./Max.) 29.5"/43.3" (75/110 cm) |
| Seat width | (distance between hip guides) (Min./Max.) 6.3"/10.2" (16/26 cm) |
| Seat depth | (back support to back of knee) (Min./Max.) 7.5"/11.4" (19/29 cm) |
| Knee width | (distance between pommel and side of seat) 3.5" (9 cm) |
| Footplate | Plantarflexion 10º |
| Footplate | Dorsiflexion 10º |
| Chest width | (distance between laterals) (Min./Max.) 6.3"/8.75" (16/22 cm) |
| Backrest height | (sitting shoulder height) (Min./Max.) 12.6"/15" (32/38 cm) |
| Backrest height | (with shoulder support) (Min./Max.) 16.5"/18.9" (42/48 cm) |
| Backrest angle | Prone 10º (Recline 25º) |
| Seat to footplate | (Sole of foot to back of knee) (Min./Max.) 4.8"/10.6" (12.25/27 cm) |
| Tilt-in-space | High-low base Prone 10º/Recline 30º |
| Tilt-in-space | Easy chassis Prone 20º /Recline 20º |
| Top of seat to floor | (Easy chassis) (Min./Max.) 11"/15" (28/38 cm) |
| Top of seat to floor | (High-low base) (Min./Max.) 10"/25" (27/65 cm) |
| Tray height | (seat to top of tray) (Min./Max.) 4.5"/6.7" (11.5/17 cm) |
| Tray size | 18.1"x20" (46x56 cm) |
| Seat unit (minimum dimensions for storage) | |
| Weight | 13.2 lbs. (6 kg) Length 14.6" (37 cm) |
| Width | 14.6" (37 cm) |
| Height | 15.7" (40 cm) |
| High-low base | (excluding push bar; minimum dimensions for storage) |
| Weight | 19.8 lbs. (9 kg) |
| Width | 21.3" (54 cm) |
| Height | 12.4" (31.5 cm) |

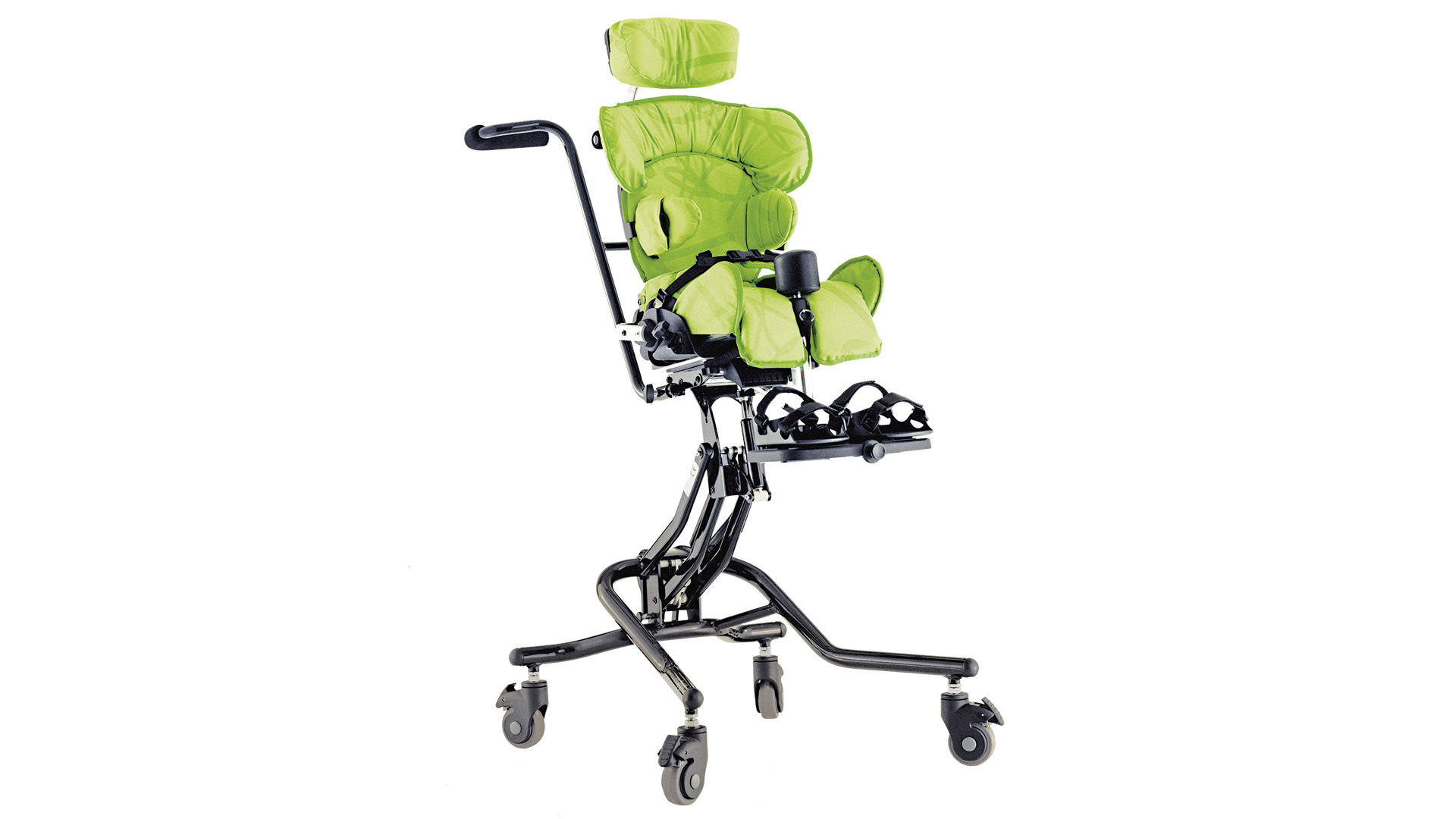

Squiggles Seating System and Hi-Low Base
With its bright colours and clinical focus, the Squiggles Seat has always been about fulfilling the postural and emotional needs of young children and their families. By incorporating new design elements, the Squiggles Seat is now able to help an even broader range of kids carry out everyday functions at home, in the classroom or even out and about.
Features
Head
- Wider contoured headrest providing greater lateral support.
Trunk
- Contoured shoulder pad increases back height by 7.5 cm.
- Back height adjustment knob changed to ratchet handle.
- Improved tray locking mechanism.
- Padded grab rail can be used instead of tray in buggies.
Pelvis
- Pelvic harness attachment points and webbing reinforced to cater for kids with strong extensor patterns.
- More width adjustment on hip laterals +4 cm (26 cm max).
Legs & Feet
- Additional lateral padding at knees, up to 3 cm both sides. Helps prevent low tone kids’ legs from abducting - accessory only.
- Minimum on seat to footplate height reduced to 12.25 cm (from 16 cm).
Base
- 10 degrees extra Tilt-in-Space on High-low base, giving 30 degree recline.
Features
- Seat base: back rest, sacral support, upper leg support, chassis interface lock
- Covers include: back rest cushion, seat cushion, sacral cushion, medium pelvic harness and lumbar wedges
